在沼氣工程、沼氣設備、軟體沼氣池無論哪種方式，利用前都必須對沼氣進行必要的脫硫、脫水、除塵等處理。為了保證沼氣產生過程中用戶的安全，沼氣脫硫脫水系統是沼氣生產中必不可少的設備，脫硫脫水設備凈化沼氣中的有害氣體，保證在這一過程中沼氣有效安全的產出，濟寧力揚環保公司生產的沼氣工程設備，具有完善的技術和質量要求，是您放心的選擇。
Regardless of the method used in biogas engineering, biogas equipment, or soft biogas digesters, necessary desulfurization, dehydration, dust removal, and other treatments must be carried out on biogas before utilization. In order to ensure the safety of users during the biogas production process, the biogas desulfurization and dehydration system is an essential equipment in biogas production. Desulfurization and dehydration equipment purifies harmful gases in biogas, ensuring the effective and safe output of biogas in this process. The biogas engineering equipment produced by Jining Liyang Environmental Protection Company has complete technical and quality requirements, making it a reliable choice for you.
一、沼氣脫硫脫水系統工藝流程：
1、 Process flow of biogas desulfurization and dehydration system:
沼氣----脫水----脫硫----阻火----發電或鍋爐燃燒

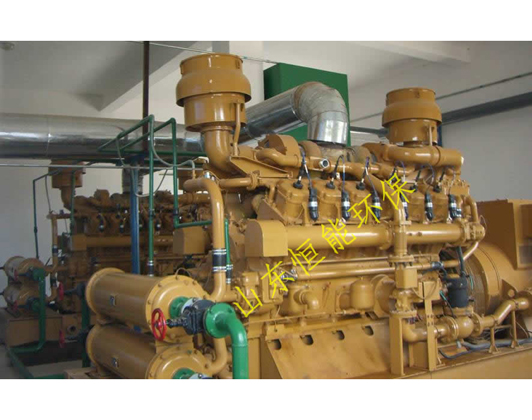

Biogas - Dehydration - Desulfurization - Fire blocking - Power generation or boiler combustion
二、沼氣脫硫脫水系統高效脫硫塔的技術參數
2、 Technical parameters of high-efficiency desulfurization tower for biogas desulfurization and dehydration system
1、脫硫效率：≥98％ 脫硫劑：氧化鐵及其復合物
1. Desulfurization efficiency: ≥ 98% Desulfurizer: Iron oxide and its composites
三、沼氣脫硫脫水系統塔內主要結構及脫硫過程
3、 The main structure and desulfurization process inside the biogas desulfurization and dehydration system tower
根據用戶的實際氣體氣量和氣體中硫化qing含量，專門量身設計外形尺寸和內部結構。不同類型的氣體，不同氣體中硫化qing含量，不同氣體壓力設計的脫硫設備尺寸不同，內部結構不同。為實時監控再生過程中硫化物及多硫化物與空氣中的氧氣反應速度，增加溫度監控設備，避免因再生過程中通入空氣量過大，放熱反應劇烈，溫度超過脫硫劑的燃點，發生意外火災。
Tailor designed external dimensions and internal structure based on the actual gas volume and sulfur content of the user. Different types of gases, sulfur content in different gases, and desulfurization equipment designed for different gas pressures have different sizes and internal structures. To monitor the reaction rate of sulfides and polysulfides with oxygen in the air during the regeneration process in real time, temperature monitoring equipment is added to avoid accidental fires caused by excessive air flow during the regeneration process, intense exothermic reactions, and temperatures exceeding the ignition point of the desulfurizer.
四、沼氣脫硫脫水系統需要的設備和材料脫硫塔、脫水塔、阻火器、管道、閥門
4、 Equipment and materials required for biogas desulfurization and dehydration system: desulfurization tower, dehydration tower, flame arrester, pipeline, valve
五、沼氣脫硫脫水系統更換方法
5、 Replacement method for biogas desulfurization and dehydration system
沼氣脫硫劑使用6個月，必須更換。首先關閉沼氣凈化調壓器開關，打開沼氣凈化脫硫塔進出料口，將脫硫劑在出口掏凈，關閉出料口，在進料口填裝新脫硫塔，填滿后封閉進料口。 更換下的脫硫劑還可再使用，方法是：將更換下來的脫硫劑先除去碎沫，再把顆粒型劑放在陰涼、通風、干燥處2-4天，等到脫硫劑的顏色變成褐色，用塑料袋密封起來，不要受潮、曝曬、壓碎，等下次更換使用。換下來的脫硫劑多只能再用兩次，但再次使用時間只能在3-4個月。
The biogas desulfurizer must be replaced after being used for 6 months. Firstly, turn off the switch of the biogas purification pressure regulator, open the inlet and outlet of the biogas purification desulfurization tower, clean the desulfurizer at the outlet, close the outlet, fill the inlet with a new desulfurization tower, and then close the inlet. The replaced desulfurizer can still be used. The method is to first remove the foam from the replaced desulfurizer, and then place the granular agent in a cool, ventilated, and dry place for 2-4 days. Wait until the color of the desulfurizer turns brown, seal it with a plastic bag, do not get damp, exposed to sunlight, or crushed, and wait for the next replacement. The replaced desulfurizer can only be reused twice, but the reuse time can only be 3-4 months.
沼氣脫硫脫水系統組成由水封器，脫硫器和汽水分離器三部分組成。沼氣脫硫脫水系統參數水封器的作用脫硫這一環節，沼氣脫硫脫水系統中會用到一個保證安全，不baozha、不著火的中間小設備，這就是水封器，防止回水。一旦瓦斯管內發生baozha或燃燒，由于baozha波和火焰被水封所隔絕，同時使防爆蓋自動沖開，baozha能量得到釋放，因此可以保護礦井上下、抽放泵站設備及用戶的安全。
The biogas desulfurization and dehydration system consists of three parts: a water seal, a desulfurizer, and a steam water separator. The function of the water seal in the parameters of the biogas desulfurization and dehydration system. In the desulfurization process, a small intermediate equipment that ensures safety, is not harmful, and does not catch fire will be used in the biogas desulfurization and dehydration system. This is the water seal to prevent backflow. Once there is a gas explosion or combustion inside the gas pipe, the explosion wave and flame are isolated by the water seal, and the explosion-proof cover automatically bursts open, releasing the energy of the explosion. Therefore, it can protect the safety of the equipment and users of the mining up and down, pumping stations, and pumping stations.
For more questions or detailed information about biogas desulfurization, please visit our company's website: http://shkaihu.com There will be a lot of content on the website for reference only.
